CFN-440-1ZI

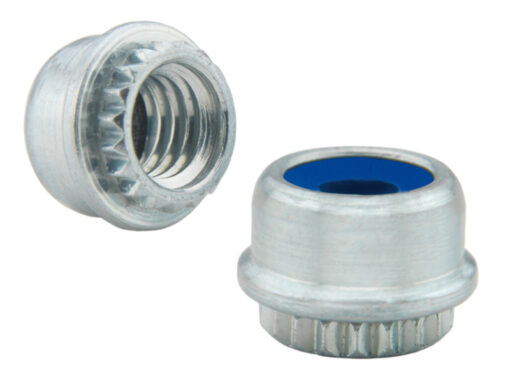

Nylon Insert Self-Locking Fasteners – Types CFN

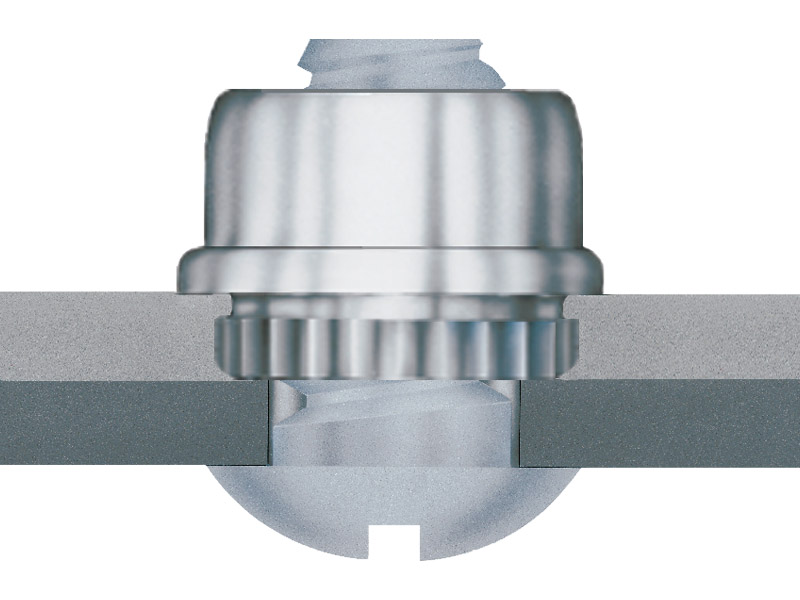

Type CFN broaching fasteners are available for thinner sheet, close-to-edge applications. The locking element provides prevailing torque to eliminate loosening of mating threaded hardware.
Available on Pre-order
L/T "4 - 8 Weeks"
Login/Register to order!
| Weight | 0.22136 kg |
|---|---|
| Thread Code | |
| Thread Size | |
| Thread Specification | |
| Shank Code | |
| Fastener Material | |
| Standard Finish | colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633, Zinc plus Clear Chromate |
| For Use in Sheet Hardness | |
| Max. Temperature Limit_ºC | |
| Max. Temperature Limit_ºF | |
| Product Category | |
| CAD Supplier | |
| CADPartID | |
| Application Type | Automotive Electronics, Datacom, Electric Vehicle Chargers, Industrial, Telecom |
| Base Panel Material | |
| Brand | |
| Fastener Characteristics | |
| Industry | Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical |
| PEM Product Family | |
| Product Type | |
| Technology Type | |
| Unit (Metric/Unified) | |

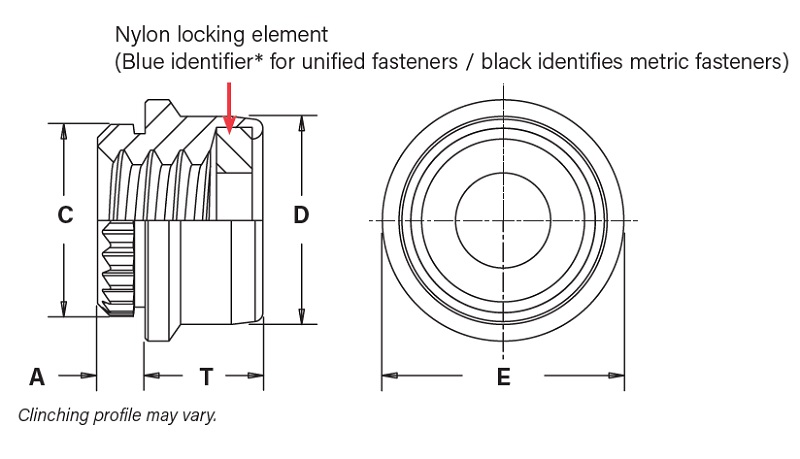

| A (Shank) ± .003_in | |
| C ± .002_in | |
| D ± .004_in | |
| E + .001 – .004_in | |
| Min. Sheet Thickness_in | |
| T Max._in |
Resources
Installation & Performance Data
| TYPE | THREAD CODE | MAX. FIRST ON PREVAILING TORQUE (in. lbs.) | MIN. FIRST OFF PREVAILING TORQUE (in. lbs.) | TEST SHEET MATERIAL & THICKNESS | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| CFN | 440 | 3 | 0.38 | .040″ Cold-rolled Steel | 1000 | 10 | 4 |
