PF50-M3-0CN
Captive Panel Screw-Low Profile Knob, Spring-loaded – PF50/PF60 Series
Low-profile design satisfies many functional and cosmetic requirements.
Type PF50 with convenient large head and Phillips recess for tool or finger operation.
Available with six-lobe recess.
71 in stock (can be backordered)
Login/Register to order!
| Weight | 4.53955 kg |
|---|---|
| Thread Code | |
| Thread Size | |
| Thread Size X Pitch | |
| Thread Specification | |
| Material Knob | |
| Material Retainer | |
| Material Screw | |
| Material Spring | |
| Finish Retainer | |
| Finish Screw | |
| Finish Spring | |
| For Use in Sheet Hardness | HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell) |
| Driver Size | |
| Product Category | Captive Panel Screw-Low Profile Knob, Spring-loaded – PF50/PF60 Series |
| CAD Supplier | |
| Cad View | |
| CADPartID | |
| Thread Type | |
| Application Type | |
| Base Panel Material | |
| Brand | |
| Fastener Characteristics | |
| Finish Knob | |
| G Plus Minus 025in 64mm | |
| Industry | |
| Installation Equipment | |
| PEM Product Family | |
| Product Type | |
| Technology Type | |
| Unit (Metric/Unified) | |

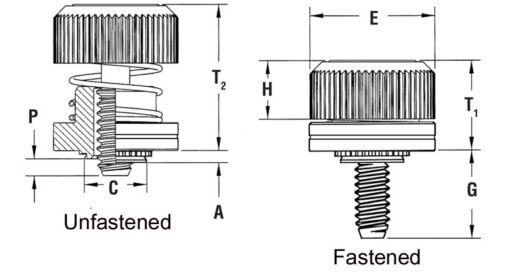

| A Shank Max | |
| E ± 0.25_mm | |
| H ± 0.2_mm | |
| Hole Size in Sheet + 0.08_mm | |
| Min. Dist. Hole C/L to Edge_ | |
| Min. Sheet Thickness_mm | |
| C Max._mm | |
| T1 Max._mm | |
| T2 Nom._mm |
| Parameter | Value |
|---|---|
| THREAD CODE | M3 |
| THREAD SIZE | M3 x 0.5 |
| THREAD SIZE X PITCH | M3 x 0.5 |
| THREAD SPECIFICATION | 6g, ANSI/ASME B1.13M |
| MATERIAL KNOB | Carbon Steel |
| MATERIAL RETAINER | Carbon Steel |
| MATERIAL SCREW | Carbon Steel |
| MATERIAL SPRING | 300 Series Stainless Steel |
| FINISH RETAINER | Bright Nickel over Copper Flash per ASTM B689 |
| FINISH SCREW | Bright nickel over copper flash per ASTM B689 |
| FINISH SPRING | Natural Finish |
| FOR USE IN SHEET HARDNESS | HRB 60 or Less (Hardness Rockwell “B” Scale) HB 107 or Less (Hardness Brinell) |
| DRIVER SIZE | #1 Phillips |
| PRODUCT CATEGORY | Captive Panel Screw-Low Profile Knob, Spring-loaded – PF50/PF60 Series |
| CAD SUPPLIER | PennEngineering® (PEM®) |
| CAD VIEW | Unfastened |
| CADPARTID | 103921 |
| THREAD TYPE | Knurled Cap, PF50 |
| APPLICATION TYPE | Datacom, Industrial, Telecom |
| BASE PANEL MATERIAL | Aluminum, Steel |
| BRAND | PEM |
| FASTENER CHARACTERISTICS | Threaded External |
| FINISH KNOB | Bright nickel over copper flash per ASTM B689 |
| G PLUS MINUS 025IN 64MM | 5.84mm |
| INDUSTRY | Datacom & Telecom, Industrial & Commercial |
| INSTALLATION EQUIPMENT/METHOD | C-Frame Manual Feed |
| PEM PRODUCT FAMILY | PF |
| PRODUCT TYPE | Panel Fasteners |
| TECHNOLOGY TYPE | Self-Clinching |
| UNIT (METRIC/UNIFIED) | Metric |
| A SHANK MAX | 0.77mm |
| E ± 0.25_MM | 10.30mm |
| H ± 0.2_MM | 5.26mm |
| HOLE SIZE IN SHEET + 0.08_MM | 5.5mm |
| MIN. DIST. HOLE C/L TO EDGE_MM | 6.60mm |
| MIN. SHEET THICKNESS_MM | 0.80mm |
| C MAX._MM | 5.48mm |
| T1 MAX._MM | 8.64mm |
| T2 NOM._MM | 13.21mm |
