MSO4-M2-3

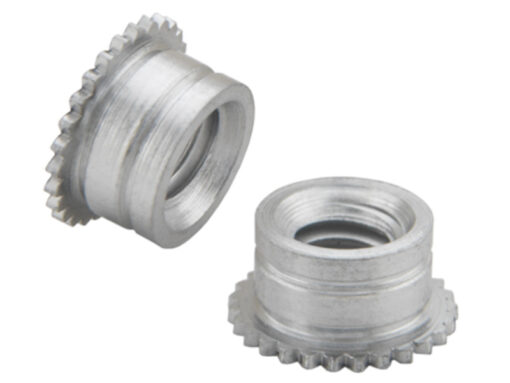

PEM® Type MSO4™ Self-clinching microPEM® Standoffs
PEM Type MSO4 self-clinching microPEM® standoffs are used to stack or space internal components and provide strong, permanent, and reusable load-bearing threads in metal sheets as thin as .012” / 0.3mm. Thread sizes have been developed as small as M1 and available unified fastener lengths are .094” and .125” and 2mm and 3mm in metric.
Become integral parts of an assembly by clinching permanently in place.
Will not loosen or fall out.
Can be installed into stainless steel sheets.
Can be installed automatically.
RoHS compliant.
3100 in stock (can be backordered)
Login/Register to order!
| Weight | 0.13636 kg |
|---|---|
| Thread Size X Pitch | |
| Thread Specification | |
| Fastener Material | |
| Standard Finish | |
| For Use in Sheet Hardness | |
| Anvil Chamfer Dia. A_mm | |
| Anvil Length_mm | |
| Product Category | |
| CAD Supplier | |
| CADPartID | |
| Application Type | |
| Base Panel Material | |
| Brand | |
| Fastener Characteristics | |
| Industry | |
| Installation Equipment | |
| PEM Product Family | |
| Product Type | |
| Technology Type | |
| Unit (Metric/Unified) | |

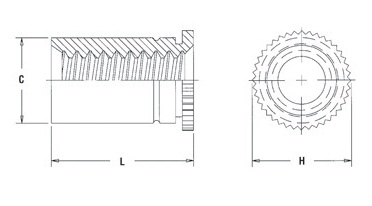

| H Nom._mm | |
| Hole Size in Sheet + 0.05_mm | |
| L +0.05 -0.08_mm | |
| Min. Dist. Hole C/L to Edge_ | |
| Min. Sheet Thickness_mm | |
| C Max._mm |
Resources
Catalog
Installation & Performance Data
| TYPE | THREAD CODE | MAX. REC. TIGHTENING TORQUE FOR MATING SCREW (N•m)) | SHEET THICKNESS (mm) | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N•m) | PULL-THRU (N) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MSO4 | M2 | 0.175 | 0.3 | 300 Series Stainless Steel | 11.1 | 150 | 0.25 | 500 | ||
| MSO4 | M2 | 0.175 | 0.43 | 300 Series Stainless Steel | 11.1 | 200 | 0.3 | 500 |
