Our Product
AEFHHS-M8-5.5ZI

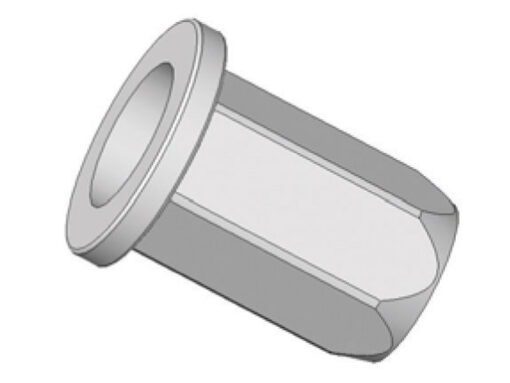

Flat Head Hex Body Round Counterbore Threaded Insert – Open End
Full hex feature for high torque applications.
Flat head design for high load applications.
Standard material: Low Carbon Steel.
Materials available on special order: 300 Series Stainless Steel, Alloy No. 260 Brass, 6053-T4 or 6061-T4 Aluminum.
Available on Pre-order
L/T "4 - 8 Weeks"
Login/Register to order!
| Thread Size | |
|---|---|
| Thread Size X Pitch | |
| Thread Specification | |
| Fastener Material | |
| Standard Material | |
| Standard Finish | Fe/Zn 8, RoHS Compliant Zinc Clear per ASTM B 633, Type V, Zinc plus Clear Chromate |
| Product Category | Flat Head Hex Body Round Counterbore Threaded Insert – Open End |
| CAD Supplier | |
| CADPartID | |
| Fastening | |
| ATLAS products Grip Range | |
| Base Panel Material | |
| Brand | |
| Fastener Characteristics | |
| Product Type | |
| Technology Type | |
| Unit (Metric/Unified) | |

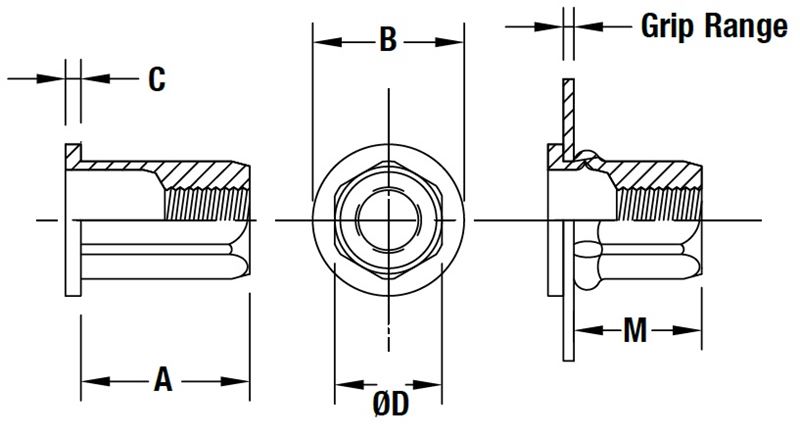

| A ± 0.25_mm | |
| B ± 0.25_mm | |
| C ± 0.13_mm | |
| Hex Hole Size + 0.1_mm | |
| øD Max._mm |
