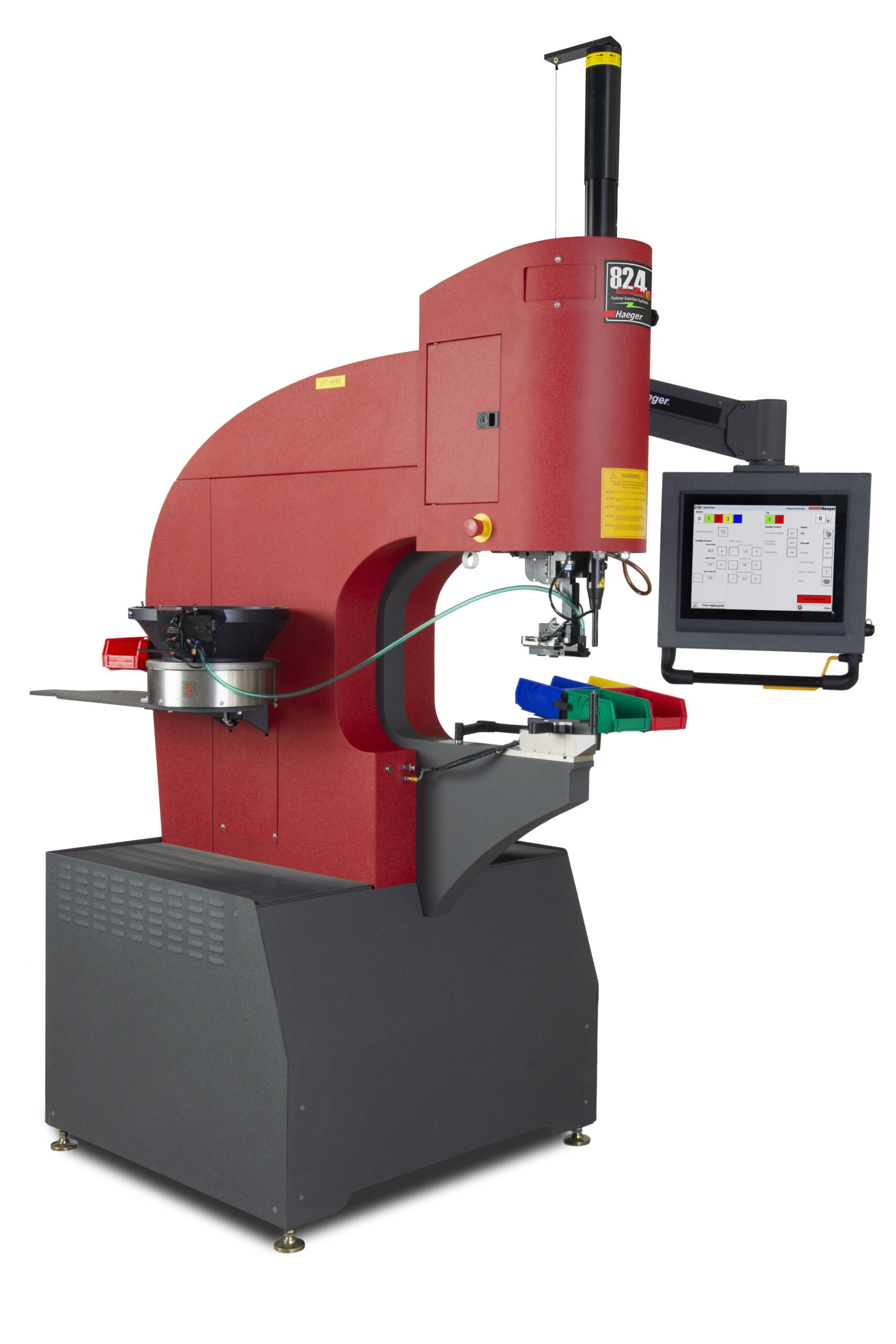

Haeger® 824 WindowTouch-5e

The 824 WT-5e is fully hydraulic, 8 ton of force, 24″ throat depth, and is powered either by 208, 220, 380, or 480 three phase. The options available are hand crank, auto feed, and Laser Light. The 824 WT-5e is best suited for mid to high volume parts with fasteners up to 0616 ( M10 ) in mild steel and 0516 ( M6 ) in stainless. This machine is also good for soft aluminum parts with the positive stop feature where force required is less than 1,000 lbs. The 824 WT-5e has a 4 station lower turret where you can insert 1 fastener automatically and three different fasteners manually allowing you to get the benefit of single part handling. Single Part Handling allows you to increase your process flow by inserting four different all with their own pressure settings and only handle the part once. This feature eliminates the bottle neck. Our InsertionLogic software has a built in wizard to quickly guide you through setting up a program based on the fasteners selected and automatically sets force, dwell, eject time, bowl vibration and all other settings needed.

Features and Benefits:

  • 4 Station Lower Turret
  • Auto Feed Bowl
  • Full Quality Control- Fastener Length, Fastener Detection
  • No Alignment Quick Change Tooling
  • Insertion Mapping and Program Storage
  • Positive Stop
  • TPS, Tooling Protection System
  • Single Part Handling
  • Batch Counter

Available on Pre-order
L/T "4 - 8 Weeks"

Login/Register to order!

Clinching Capability

Electrical

Footprint Dimensions_in

Footprint Dimensions_mm

Force Range_kN

Force Range_lbs

Motor_hp

Oil Tank Reservoir_gal

Oil Tank Reservoir_L

Speed

Weight_lb

Product Category

Fastener Range_in

Fastener Range_mm

Repeatability

Brand

Product Type

Technology Type

Stroke Length_in

Stroke Length_mm

Throat Depth_in

Throat Depth_mm

CLINCHING CAPABILITY 22 gage to 11 gage Steel (1mm to 6mm) combined thickness
ELECTRICAL 208 to 575V 3 phase – 50 or 60 Hz
FOOTPRINT DIMENSIONS_IN 59 x 40 x 94in
FOOTPRINT DIMENSIONS_MM 1499 x 1016 x 2388mm
FORCE RANGE_KN 3.6 to 72
FORCE RANGE_LBS 800 to 16000
MOTOR_HP 5
OIL TANK RESERVOIR_GAL 22
OIL TANK RESERVOIR_L 83
SPEED up to 1400 insertions per hour
WEIGHT_LB 3000
PRODUCT CATEGORY Haeger® 824 WindowTouch-5e
FASTENER RANGE_IN 0.256 to 1/2in
FASTENER RANGE_MM M2 to M12mm
REPEATABILITY +/- 2% of force setting
BRAND Haeger
PRODUCT TYPE Installation Equipment
TECHNOLOGY TYPE Installation Technology
STROKE LENGTH_IN 0 to 8.5in
STROKE LENGTH_MM 0 to 220mm
THROAT DEPTH_IN 24in
THROAT DEPTH_MM 610mm
